Core Technical Specifications

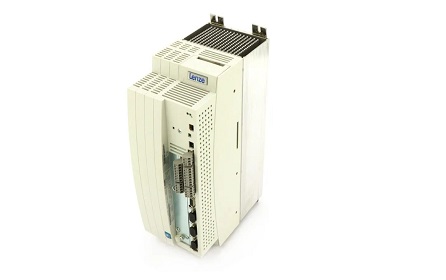

The LENZE EVS9326-EP, part of the 9300/9400 series from the German automation specialist Lenze, is a high-performance servo drive designed for industrial applications requiring precision, reliability, and adaptability. Key specifications include:

Power Input: Operates on three-phase 220V–440V AC with a frequency range of 50/60Hz, supporting diverse grid conditions. The rated input current is 20.5A, with an input power of 13.6kW (17kVA).

Output Capability: Delivers a maximum output power of 14.8kW (18.5kVA) and an output current of 22.3A, compatible with motors ranging from 0.37kW to 160kW. The output frequency spans 0–480Hz, ensuring flexibility across varying speed requirements.

Control Modes: Primarily utilizes V/F control but can be customized for advanced vector control to enhance torque and speed accuracy.

Communication Protocols: Integrates industrial standards such as Modbus and Profinet, enabling seamless multi-device coordination.

Environmental Resilience: Available in standard IP20 or ruggedized IP65-rated versions, the latter suitable for harsh environments (e.g., dust, moisture). It operates reliably within a temperature range of 0–55°C and features a compact design (345×135×250mm, 7kg).

Modular Expansion: Supports add-ons like encoder interfaces and I/O modules for complex automation tasks, alongside remote maintenance via secure VPN and web-based access.

Key Advantages and Application Scenarios

1. High-Precision Industrial AutomationThe EVS9326-EP excels in applications demanding micron-level accuracy. For instance, in CNC machining centers, its advanced algorithms enable precise positioning for complex part fabrication. Similarly, in packaging machinery, it drives high-speed filling and sorting operations through electronic cam profiles and multi-axis synchronization, handling up to 32 independent positioning sequences simultaneously.
2. Dynamic Response and Energy EfficiencyIn industries like textiles and printing, the drive ensures stable tension control by dynamically adjusting motor torque and speed, minimizing material waste. Its energy regeneration capability reduces power consumption in cyclic operations, such as elevator systems or cranes, by recovering braking energy.
3. Harsh Environment AdaptabilityThe IP65-rated variant is ideal for food processing and pharmaceutical production, where washdown conditions and chemical exposure are common. Its robust design ensures uninterrupted operation for 8–15 years under normal loads, making it suitable for 24/7 manufacturing lines.

4. Predictive Maintenance and DiagnosticsIntegrated sensors monitor real-time parameters like current and temperature, enabling early detection of faults (e.g., overheating). Modular components, such as replaceable IGBT modules, allow rapid repairs, minimizing downtime.

Industry-Specific Use Cases

Automotive Manufacturing: A European automotive supplier deployed the EVS9326-EP to synchronize robotic welding arms, achieving a 30% productivity boost in assembly lines.

Logistics Automation: In automated warehouses, the drive powers high-speed stacker cranes, improving throughput by 25% through precise positioning and rapid acceleration.

Renewable Energy: Wind turbine pitch control systems leverage its high torque output and noise immunity to maintain stability during extreme weather conditions.

Operational Guidelines

Load Management: Avoid sustained operation above 90% load capacity to prevent premature aging (lifespan may drop to 6–9 years under excessive stress).

Installation Best Practices: Ensure adequate ventilation and routine cleaning of cooling fans and heat sinks to mitigate overheating risks.

Maintenance Schedule: Conduct bi-annual inspections of electrical connections and annual firmware updates to optimize performance.

Conclusion

The LENZE EVS9326-EP stands out as a versatile, high-efficiency servo drive tailored for demanding industrial environments. Its combination of precision control, energy-saving features, and adaptability to harsh conditions makes it a preferred choice for sectors ranging from precision engineering to heavy machinery. By aligning its modular design with specific operational needs—whether through enhanced IP ratings or protocol integrations—users can maximize equipment longevity and productivity. Regular maintenance and adherence to load guidelines further ensure reliable performance, solidifying its role as a cornerstone of modern industrial automation.
