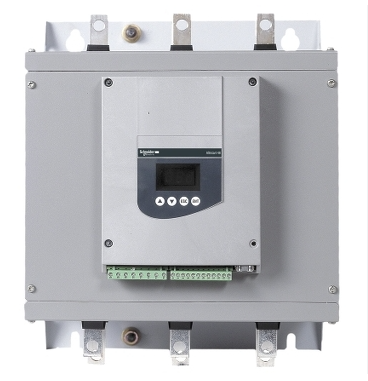

Deep Analysis of Schneider ATS48C25Q Soft Starter: Parameters, Performance, and Industry Applications

In the field of industrial automation, soft starters, as the core equipment for motor control, directly affect the operational efficiency and lifespan of the equipment. The ATS48C25Q model soft starter launched by Schneider Electric has become the preferred solution for starting medium and high voltage motors due to its precise parameter design and reliable performance. This article will comprehensively interpret this star product by combining product parameters, technical features, and typical application scenarios.

1、 Product Core Parameters: Hard Power Behind Data

Parameter Category ATS48C25Q Specification Technical Description

Rated current 25A (three-phase), suitable for motor power range: 7.5kW-15kW (380V)

Input voltage 200-690V AC (50/60Hz) wide voltage design, suitable for global power grid standards

Control voltage 100-240V AC/DC supports multiple control signal input methods

Starting methods include voltage ramp, current limiting starting, and jump starting, which can flexibly respond to different load characteristics

Stopping methods include free parking, soft parking, and pump stopping to reduce water hammer effects and protect pipeline systems

Protection level IP20 (standard)/IP54 (optional) Suitable for indoor/outdoor installation environments

Communication interface Modbus RTU (RS485) supports remote monitoring and integrated control

Size and weight 144 × 125 × 178mm (width × height × depth), compact design weighing 1.2kg, saving space in the distribution cabinet

Environmental temperature range of -20 ℃ to+50 ℃ (without freezing), suitable for extreme industrial environments

2、 Technical Highlights: Precise Control and Intelligent Protection

Adaptive current limitation

The ATS48C25Q can adjust the starting current in real-time according to the load, avoiding motor overheating or grid impact. For example, when starting the water pump, the current limit can be accurately controlled within 300% of the rated value, significantly extending the service life of the equipment.

Built in bypass contactor

After startup, it automatically switches to bypass mode to reduce energy consumption (power consumption<5W) and improve operational efficiency.

Motor thermal protection

By monitoring the temperature and current of the motor, dynamically adjusting the protection threshold to prevent motor burnout caused by overload.

Fault diagnosis and recording

Supports recording of 10 types of faults (such as overcurrent, phase loss, overheating), which can be quickly resolved through LED display screens or communication interfaces.

3、 Application scenario: Full coverage from industrial to civilian use Pump and fan system

In water supply and HVAC scenarios, the soft parking function of ATS48C25Q can eliminate water hammer effects, reduce pipeline vibration, and extend equipment life.

Compressor and conveyor belt

For heavy-duty start-up requirements, the current limiting start-up mode can smoothly increase torque and avoid mechanical impact.

Food processing and packaging machinery

Compact design and IP54 protection level, suitable for humid and dusty environments, ensuring production continuity.

4、 Selection suggestion: How to match the requirements?

power matching

Choose a soft starter based on the rated power of the motor. The 25A model is suitable for motors ranging from 7.5kW (380V) to 15kW (690V), with a 20% margin reserved to cope with peak loads.

Environmental adaptability

If installed outdoors or in high dust areas, it is recommended to choose an IP54 protective casing and add a cooling fan.
